PSV

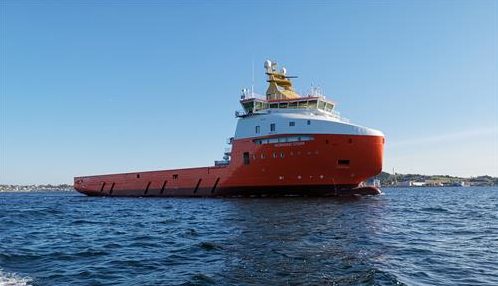

Normand Sygna

  • 1170m2
  • 3500mt
Built 2014
Design VARD 1 07
Yard VARD Vung Tau
Flag NOR
LOA 94,65m
Breadth Moulded 21m
Deck Dimensions 1170m² (58,5m x 20m)
Deck Load 3500mt
Main Class +1A1, SF, E0, DK(+), HL(2,8), Offshore Service Vessel, Supply Vessel, LFL*, COMF-V(2)C(3), Clean Design, Dynpos-AUTR, NAUT OSV(A), ESV-DP(HIL), Battery (Power)
Classification Society DNV GL
Dynamic Positioning DP 2 from Kongsberg
Draft (max) 7,032m + 0m Skeg/Nozzle
Deadweight 5700mt (d=6,95m)
Deck Strength 10mt/m²
Consumption at Service Speed 15.2m³ / 24hrs @ 12Knots
Consumption at Economy Speed 12.5m³ / 24hrs @ 10Knots
Base Oil 152m³ / 956bbls
Brine 787m³ / 4950bbls
Drill Water / WB 2806m³ / 17650bbls
Dry Bulk 301m³ / 10628cuft (6 tanks)
Fuel Oil 1334m³ / 8391bbls
Methanol 151m³ / 950bbls
Mud 1005m³ / 6321bbls
Pot Water 828m³ / 5208bbls
Total Capacity 28 Persons
Cabins 14 x 1 Person, 14 x 2 Persons
