Renewable, Subsea

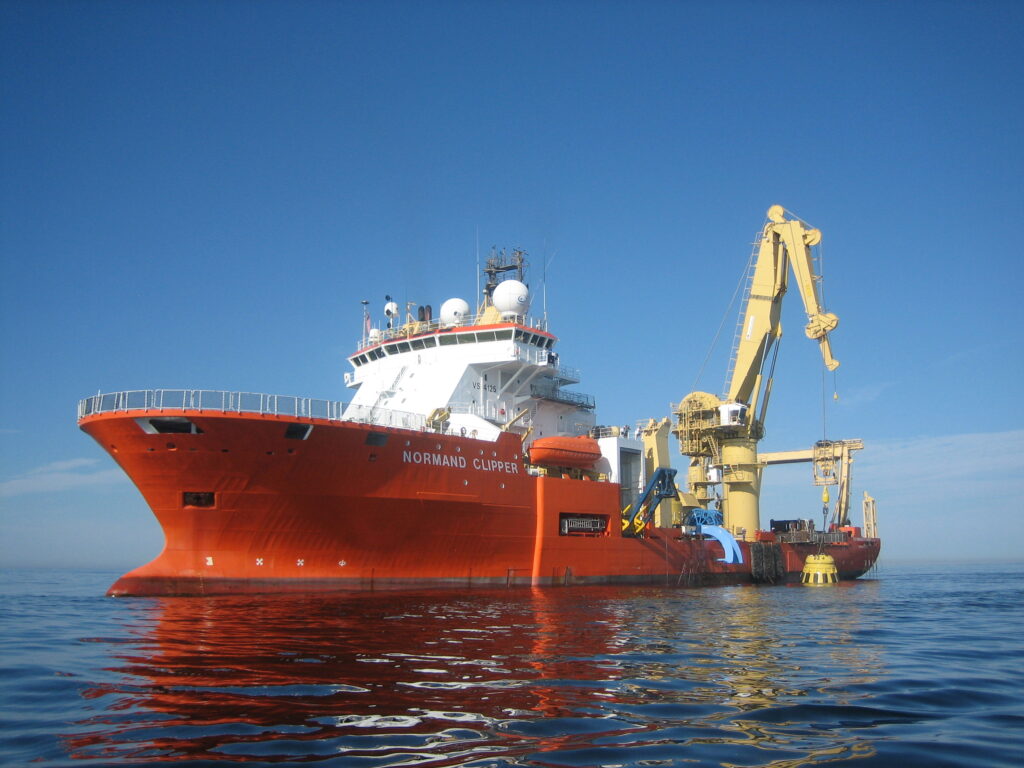

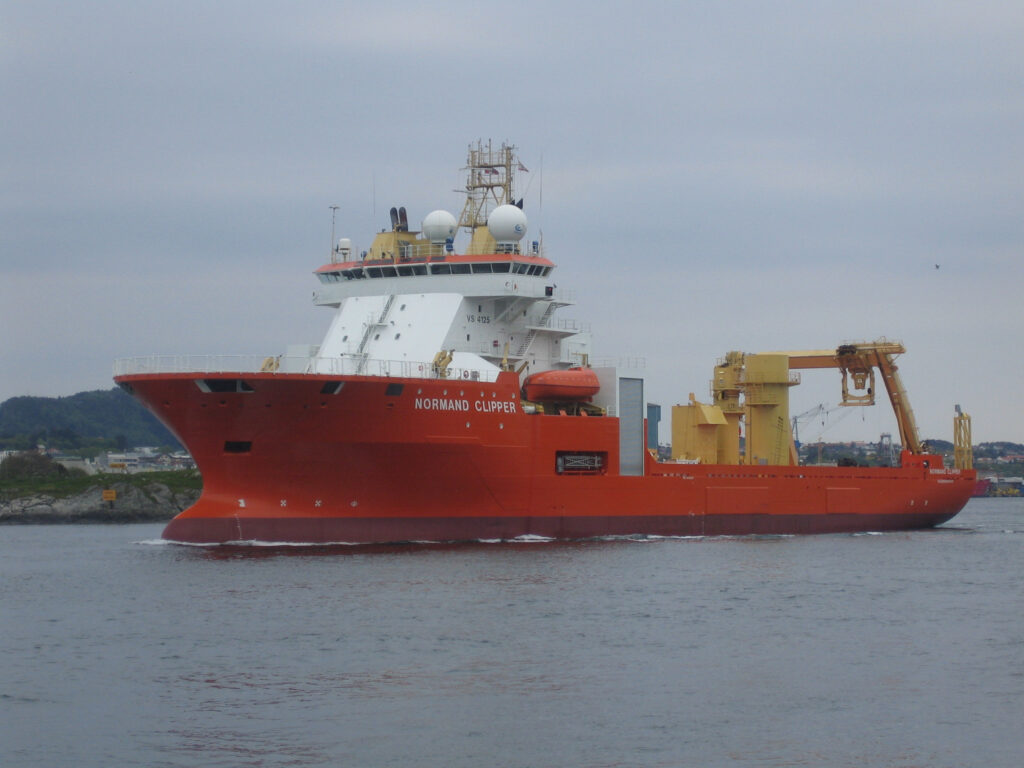

Normand Clipper

  • 1500m2
  • 250mt
  • 96
Built 2001
Design VS 4125
Flag NOR
LOA 128m
Breadth Moulded 27m
Cargo Deck Area 1500m²
Accommodation 96 Persons (32 x 1 Person, 32 x 2 Persons)
ROV Yes
Yard Ulstein Verft AS / Yard No. 258
Main Class +1A1, SF, E0, DK(+), DYNPOS-AUTR, TMON, CRANE, HELDK, BWME(C)
Classification Society DNV GL
Dynamic Positioning DP 2 from Kongsberg
Helideck Diameter19,5m, Super Puma AS 332 L2
Draft (max) 8,4m + 0m Skeg/Nozzle
Deck Cargo Capacity 5000mt (CoG 1,0m above main deck)
Deck Strength Main dk:Fr.#-12-#52 15mt/m2. FR#52-#84 10mt/m2. FR#84-#110 15mt/m2 A-dk: Fr #110-120 5mt/m²mt/m²
Deadweight 9976mt (d= 0m)
ROV system WROV
Moonpool 36,96m² (5,6m x 6,6m)
Main Crane 1 x SWL 250mt@ 36,3m - Single fall - AHC - CT:N/A- Sealift:N/A - Personnel lift: N/A - placed on Port Side - Wire lenght: TBCm - Wire diameter: TBCmm
