Subsea

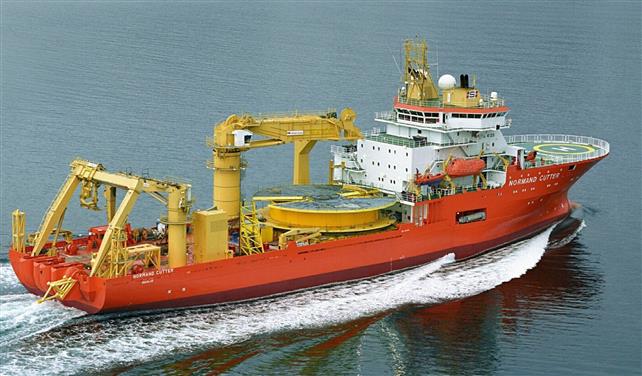

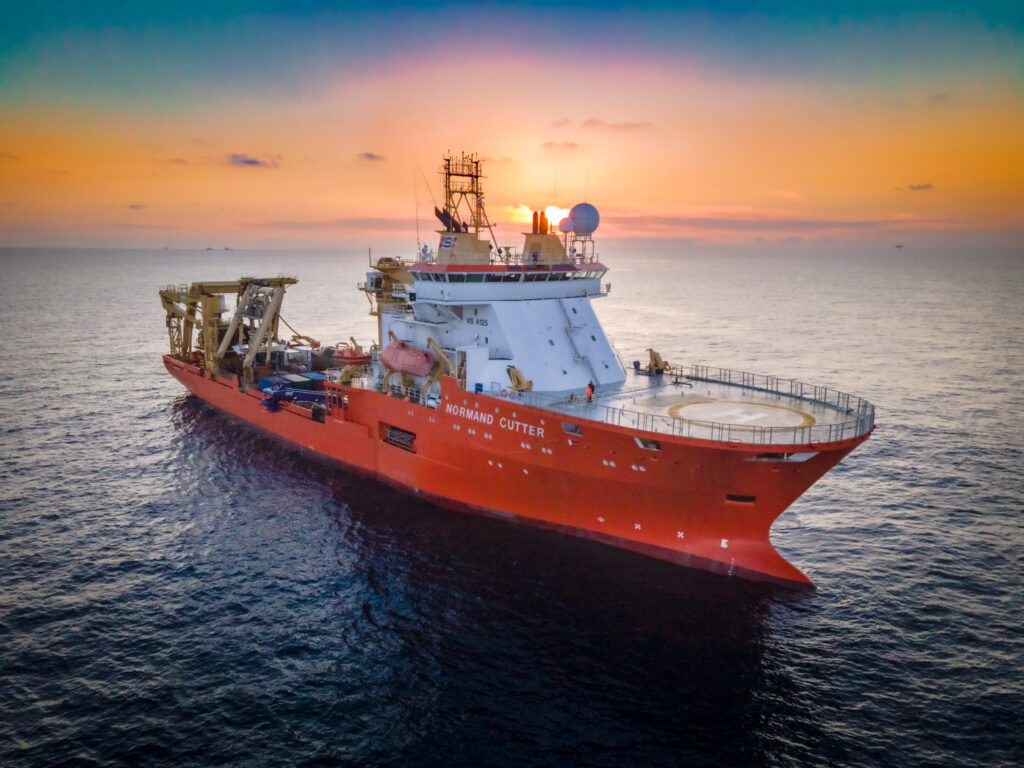

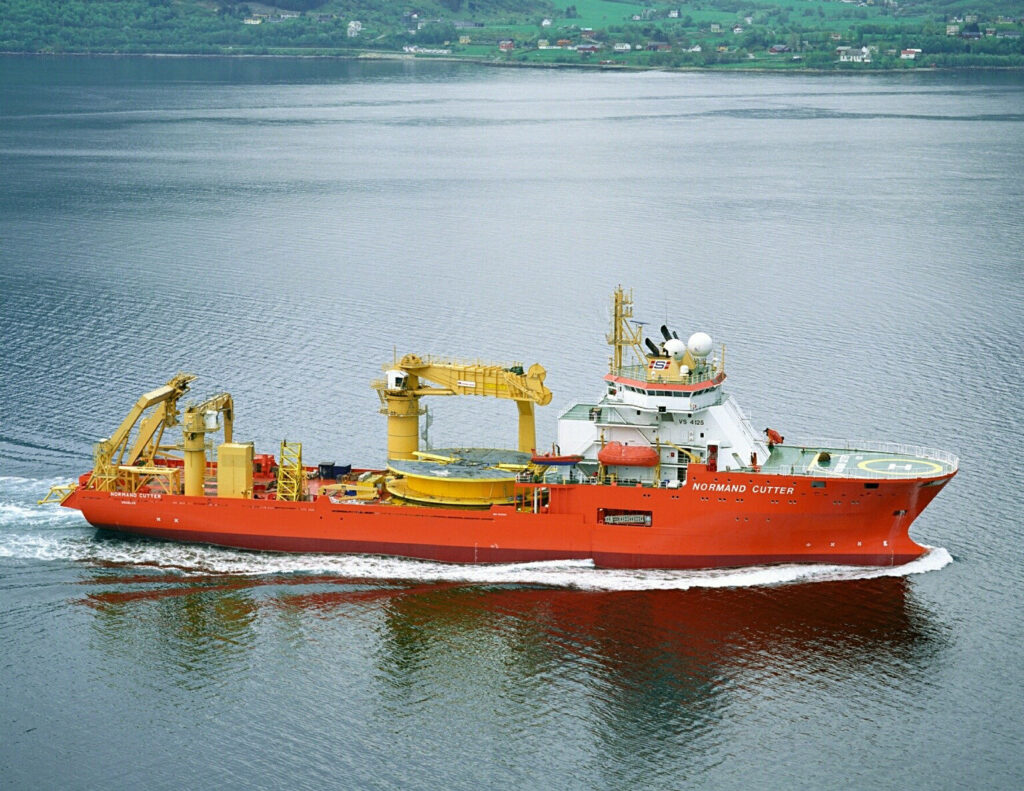

Normand Cutter

  • 1600m2
  • 300mt
  • 114
Built 2001
Design VS 4125
Flag NIS
LOA 127,5m
Breadth Moulded 27m
Cargo Deck Area 1600m²
Total Accommodation 114 Persons
ROV Yes
Yard Ulstein Verft / Yard No. 257
Main Class +1A1, SF, E0, DK(+), DYNPOS-AUTR, TMON, CRANE, HELDK
Classification Society DNV GL
Dynamic Positioning DP 2 from Kongsberg
Helideck Diameter19,5m, 9,3mt
Draft (max) 8,4m + 0m Skeg/Nozzle
Deck Cargo Capacity 5000mt/3200mt + Max 5000t with out using the crane, 3200t when lifting 300t at 20metersmt (CoG 1,0m above main deck)
Deck Strength 10mt/m²
Deadweight 10120mt (d=0 m)
Moonpool 51,84m² (7,2m x 7,2m)
ROV system 2 WROV
Main Crane 1 x SWL 300/70mtmt@ 20/40mm - Single fall - AHC
Main Crane Aux winch 1 x SWL TBCmt@ TBCm - Single fall
Crane 2 1 x SWL 25/12mt@ 12/26m - Single fall
