Subsea

Normand Vision

  • 2100m2
  • 400mt
  • 140
Built 2014
Design Vard 3 06
Flag NIS
Accommodation 140 Persons (70 x 1 Person, 35 x 2 Persons)
LOA 157m
Breadth Moulded 27m
Cargo Deck Area 2100m²
ROV Yes
Yard VARD Søviknes / Yard No. 811
Main Class +1A1, SF, E0, DK(+), COMF-V(3)C(3), SPS, CLEAN DESIGN, DYNPOS-AUTRO, NAUT-AW, ICE-C, TMON, VIBR, BIS, CRANE, HELDK-SH
Classification Society DNV GL
Dynamic Positioning DP 3 from Kongsberg
Helideck Diameter21m, 15mt Sikorsky 92
Draft (max) 8,5m + 0m Skeg/Nozzle
Deck Cargo Capacity 7000mt
Deck Strength 10 and 15mt/m²
Deadweight 10751mt (d=8,5m)
Moonpool 41,04m² (7,2m x 5,7m)
ROV system 2 WROV
Main Crane SWL 400mt - Single fall - AHC
Main Crane Aux winch SWL 40mt@ 43m - Single & double fall - AHC
Crane 2 SWL 50/100mt@ 12m - Single & double fall - AHC
Crane 2 Aux winch SWL 10mt@ 26m - Single fall

Company Disclosure

Contract for CSV Normand Vision with Ocean Installer

Solstad Offshore ASA has been awarded a contract with Ocean Installer for the CSV Normand Vision. The contract commences in 1Q and the firm and optional periods covers the majority of 2021.

Read more

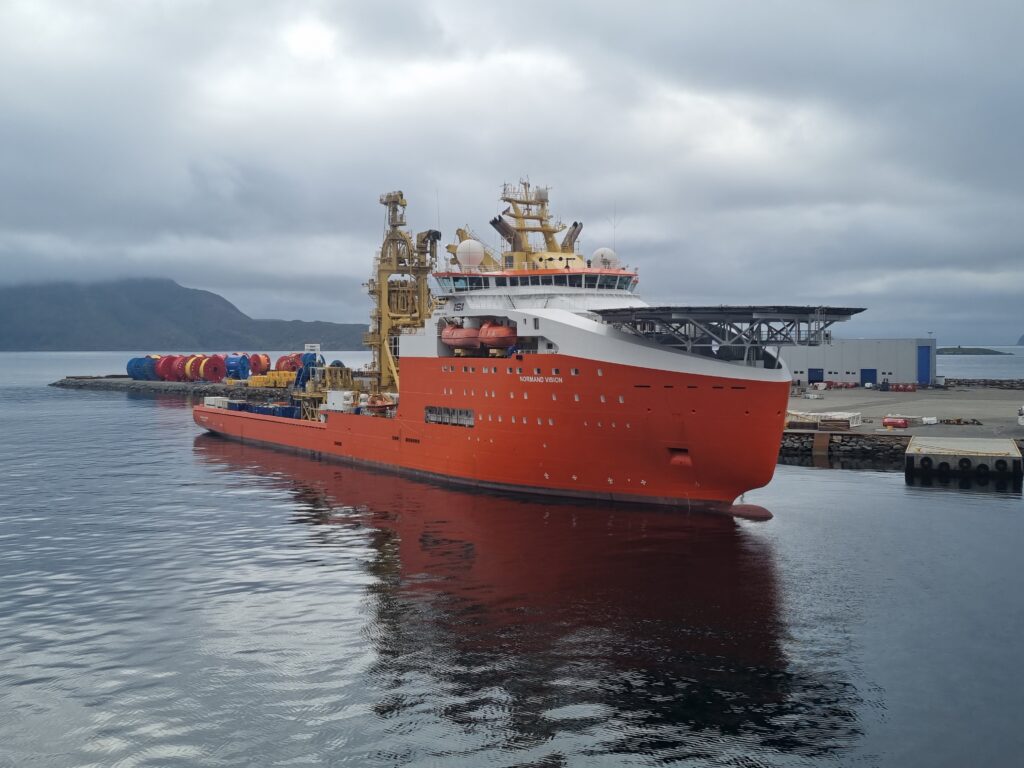

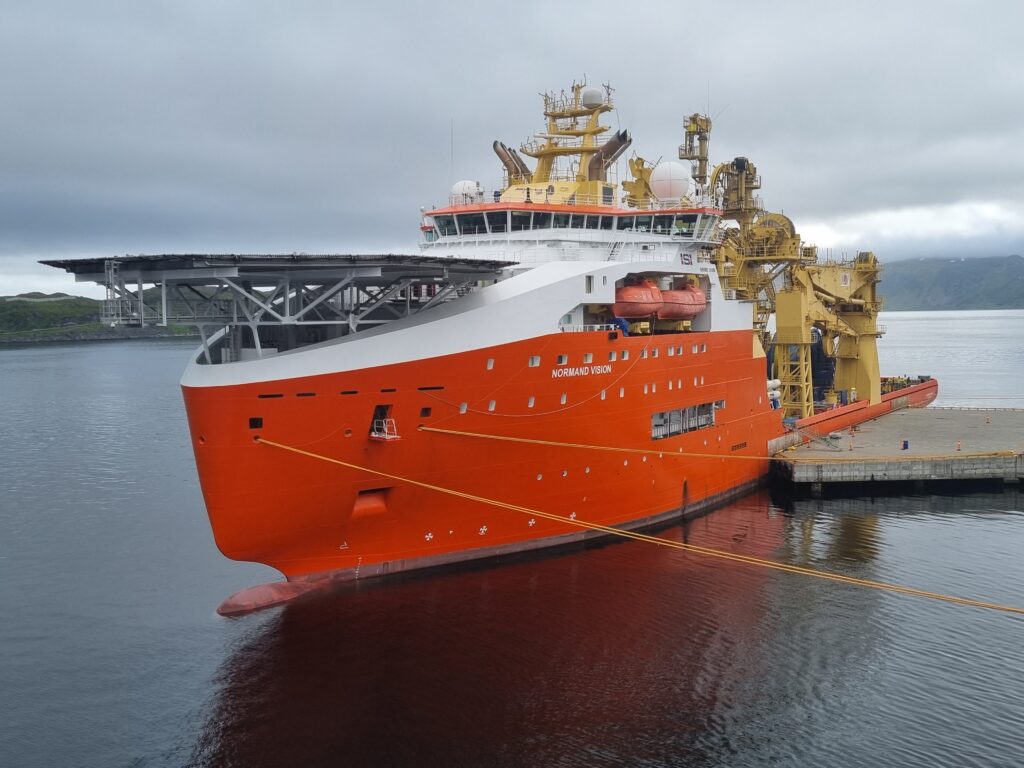

MS “NORMAND VISION” – Yard no: 811 by: VARD SØVIKNES
