AHTS

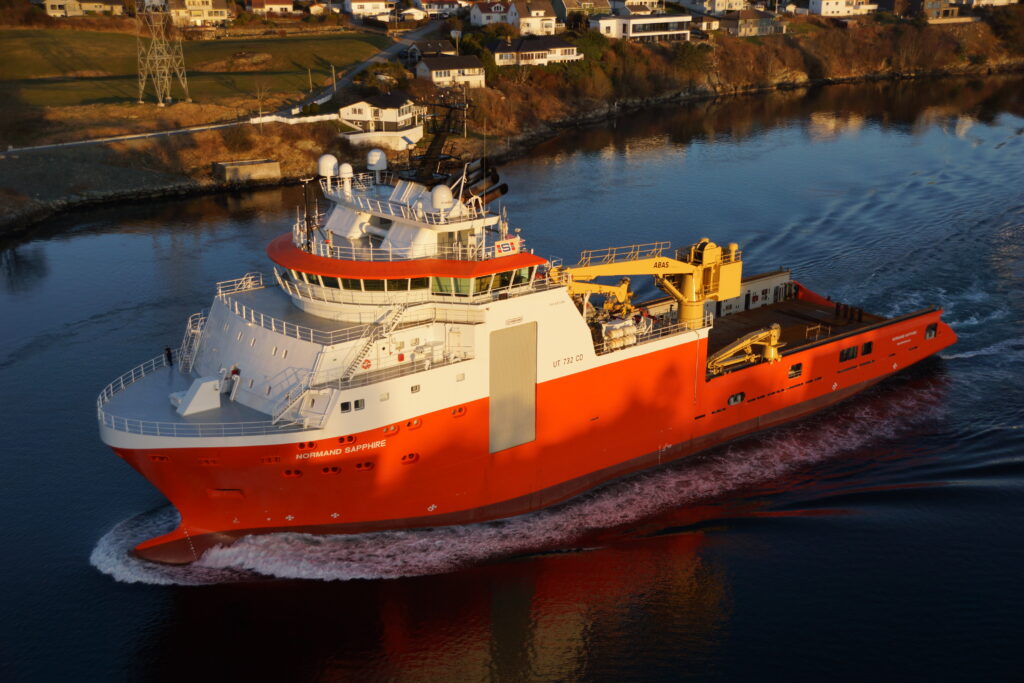

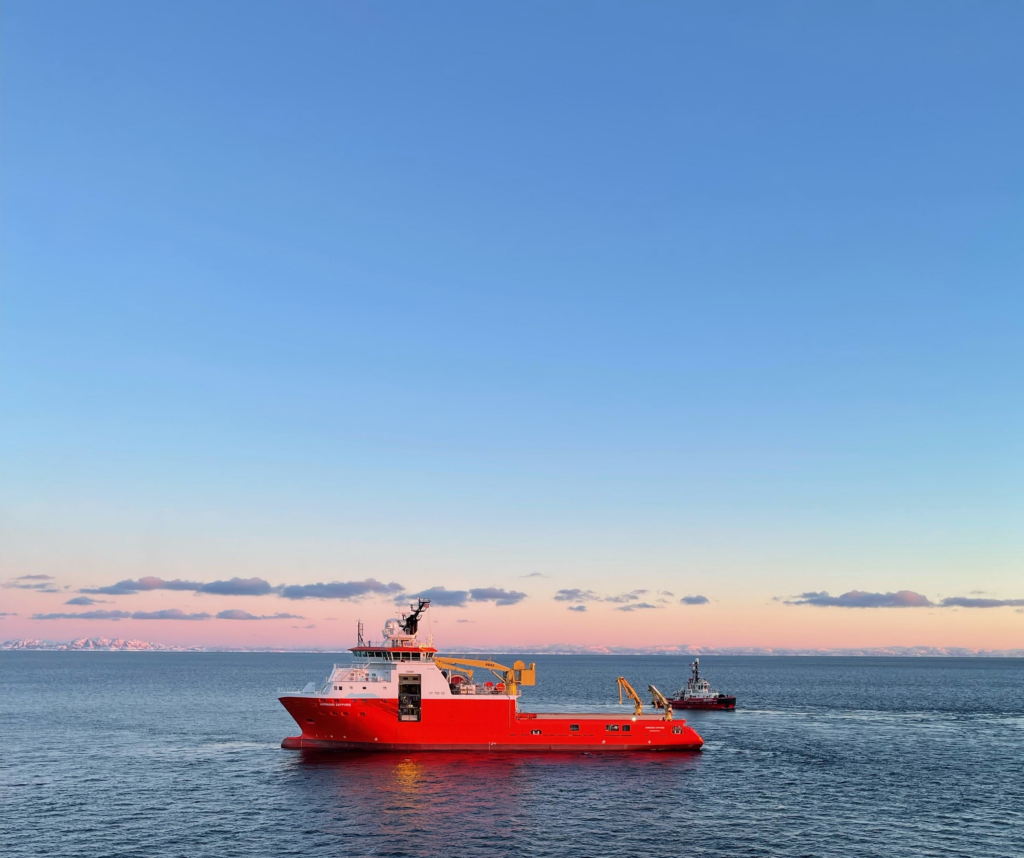

Normand Sapphire

  • 798m2
  • 272mt
  • ROV
Built 2008
Design UT 732 CD
Flag NOR
LOA 92.7m
Breadth Moulded 22m
Yard Langsten
Main Class +1A1, SF, E0, DK(+), Tug, Supply Vessel, COMF-V(3)C(3), Clean Design, Dynpos-AUTR, NAUT OSV(A), Ice-C, TMON, BIS
Classification Society DNV GL
Dynamic Positioning DP 2 from Kongsberg
Accommodation 55 Persons
Bollard Pull 282mt
Deck Dimensions 798m² (42m x 19m)
Deck Load 2100mt
Deck Strength 10mt/m²
Draft (max) 7.8m + 0.8m Skeg/Nozzle
Drill Water / WB 1879m³ / 11819bbls
Fuel Oil 1378,7m³ / 8672bbls
Deadweight 4583mt (d=7.8m)
Total BHP 27472 BHP
Special Handling Brake (Static/Band Brake) 600mt
Towing/Working Winch Brake (Static/Band Brake) 675mt
Towing/Working Winch No 2 Brake (Static/Band Brake) 675mt
Secondary Winch Fibre Capacity - 160mm 2 x 2523 + 582m of 160mm
Chain Locker 2x250m³ + 3x160m³ = 980m³
Gypsies 2 x 76mm, 2 x 84mm, 2 x 120mm
Shark Jaws 2 x 800 MWL - Rolls Royce
Shark Jaws Insert 70mm - 165mm
Tow Pins 4 x 270 MWL - Rolls Royce
Smit Bracket 500 Max Loadmt MWL
Secondary Winch Number of Drums 2 Drums
Secondary Winch Brake 210mt
Secondary Winch Max Weight 150mt
Pot Water 1098,5m³ / 6910bbls
ROV Control Room 1 ROV Control Room
ROV Hangar Starboard side, Port side
ROV system 1 WROV
